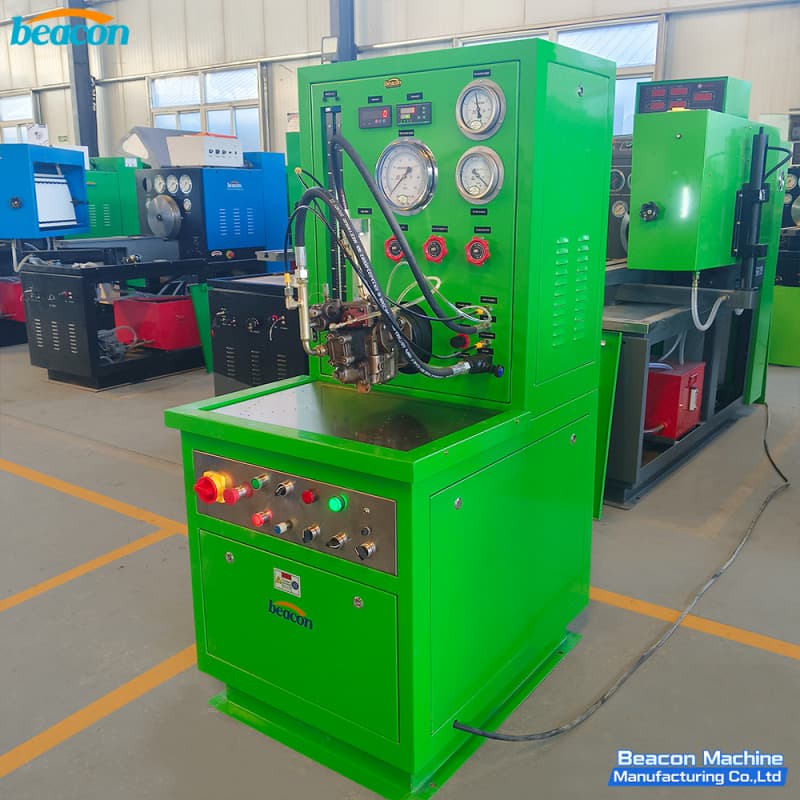

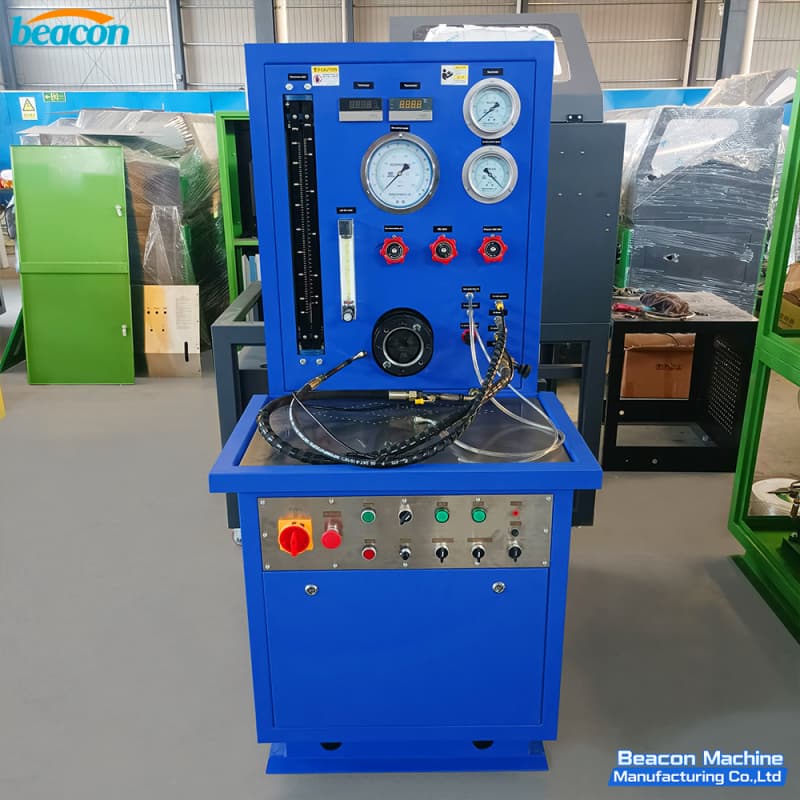

Cummins PT Pump Test Bench Diesel Fuel Pump Test Stand PT212 BEACON MACHINE | For NT855 KTA19 3015259 Komatsu Black Smoke Repair

Heavy-Duty Cummins PT Fuel System Overhaul: Eradicate Power Loss, Black Smoke, and Throttle Hesitation

Unlike standard inline or common rail systems, the Cummins PT (Pressure-Time) injection system relies strictly on hydraulic manifold pressure and mechanical camshaft opening duration. When gear pump clearances degrade or governor springs fatigue, heavy equipment experiences critical operational failures: dense black exhaust smoke under load, severe horsepower drops, unstable engine hunting, delayed throttle response, hard starting, and excessive diesel consumption. The PT212 BEACON MACHINE is an industrial-grade cummins pt pump test bench for heavy equipment developed to calibrate, inspect, and benchmark all PT fuel gear pumps back to factory specifications.

Comprehensive Compatibility: Engines, Part Numbers & Heavy Mining Machinery

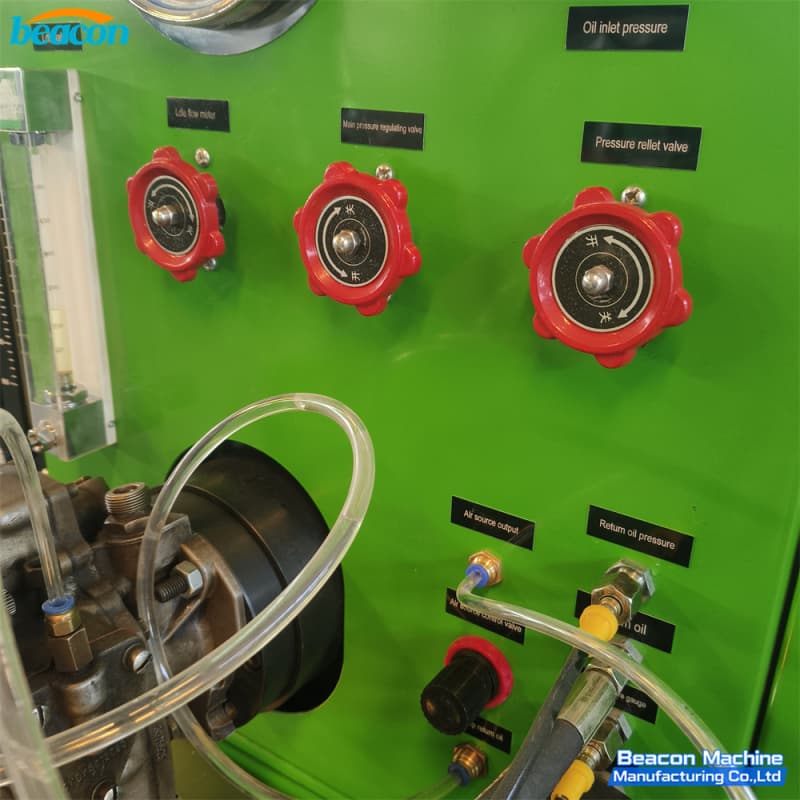

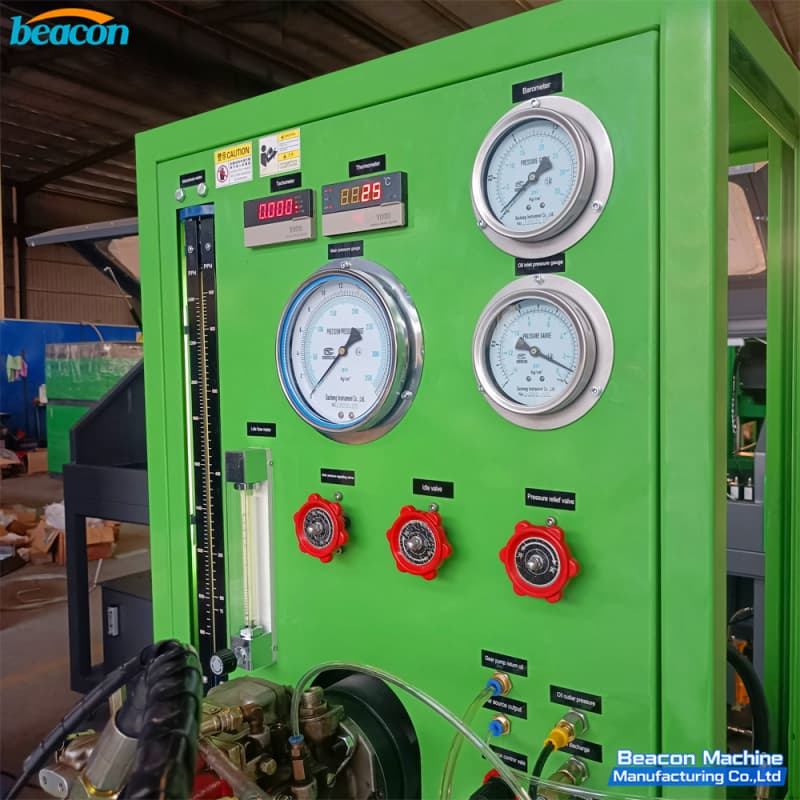

Operating as a specialized diesel fuel pump test stand, the PT212 incorporates genuine analog differential gauges, a dual-float precision rotameter, and an integrated pneumatic simulation circuit to verify AFC (Air-Fuel Control), ASA (Air Signal Attenuator), and SPL (Smoke Pollution Limiter) assemblies without vehicle presence.

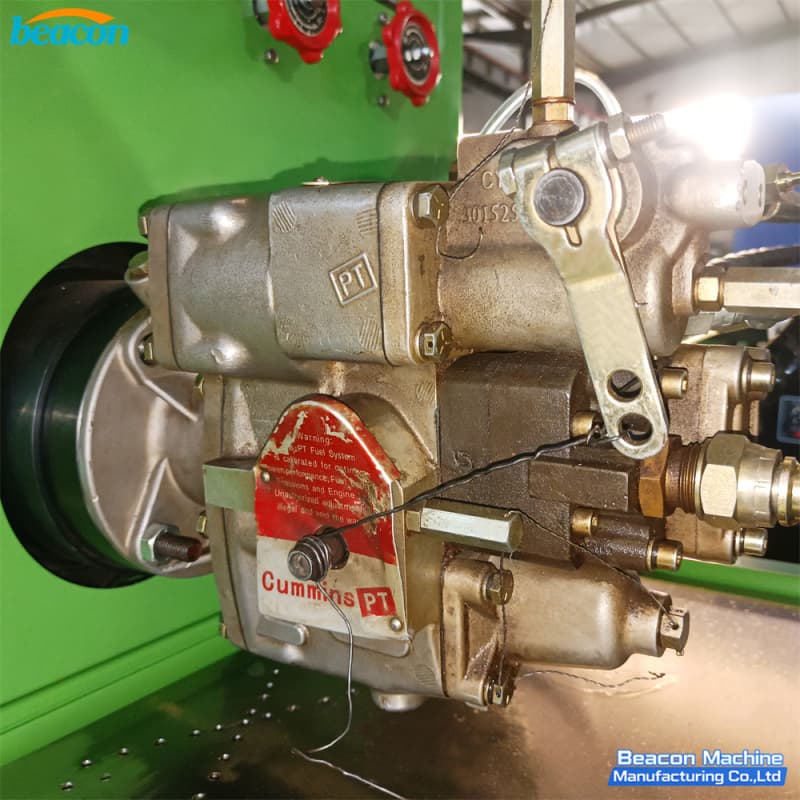

• Genuine Cummins PT Pump Part Numbers:                3015259, 3075340, 3015258, 3015257, 4951498, 3015256, 3015255, GR-J036, and complete PTG, AFC, and VS series distributor housings.

• Cummins Diesel Engine Families:                NH220-CI, NT855, N14, KTA19, KTA38, KTA50, VTA28, QSK19, QSM11, and KT1150 heavy industrial power units.

• Compatible Heavy Machinery & Fleets:                Komatsu D80, D85-12, D155, D355, D375, D475 bulldozers; BelAZ 7540 and 7547 mining dump trucks; marine auxiliary power plants; and Cummins Power Generation stationary generator sets.

• Dynamic Diagnostic Test Points:                Gear pump sucking vacuum (0.027 MPa @ 1750 RPM), main fuel rail pressure (117 PSI / 0.806 MPa @ 1850 RPM), governor high-speed cutoff (1860–1880 RPM), maximum torque point pressure (67–78 PSI @ 1100 RPM), and throttle leakage (25–70 ml/min).

Engineering Excellence & Diagnostic Advantages of BEACON MACHINE PT212

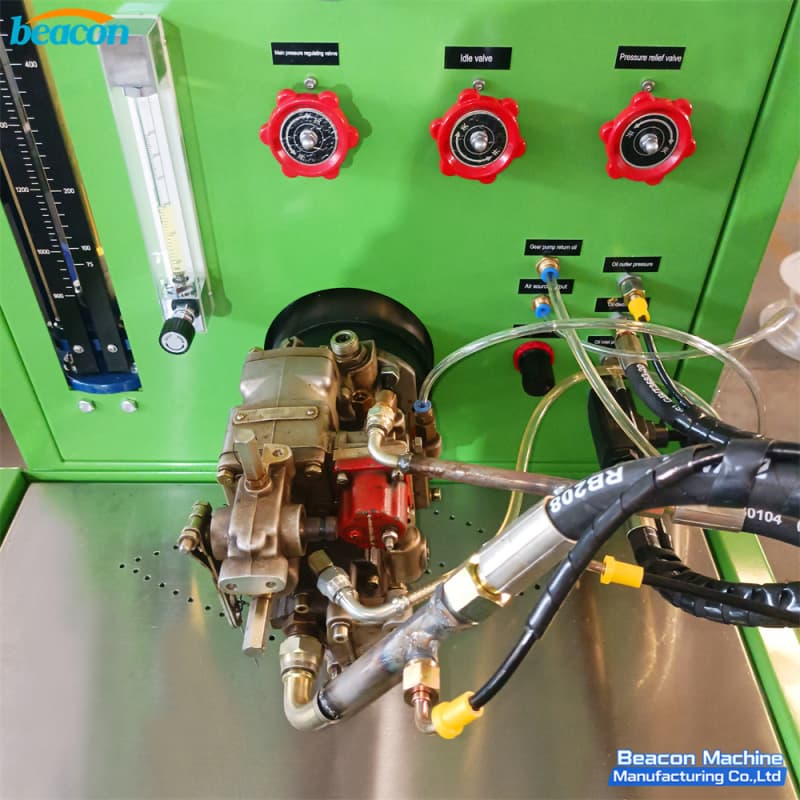

• High-Resolution 440mm Dual-Float Flowmeter: Incorporates genuine two-stage glass rotameter tubes (75–380 lb/h low-range float and 380–1600 lb/h high-range float) for absolute volumetric measurement matching Cummins factory C-spec tolerances.

• Integrated Turbocharger AFC & ASA Pneumatic Circuit: Built-in air pressure regulator, water separator, cut-off valves, and air flowmeter simulate turbocharger boost pressure to test Air-Fuel Control (AFC) diaphragms and Air Signal Attenuator (ASA) response.

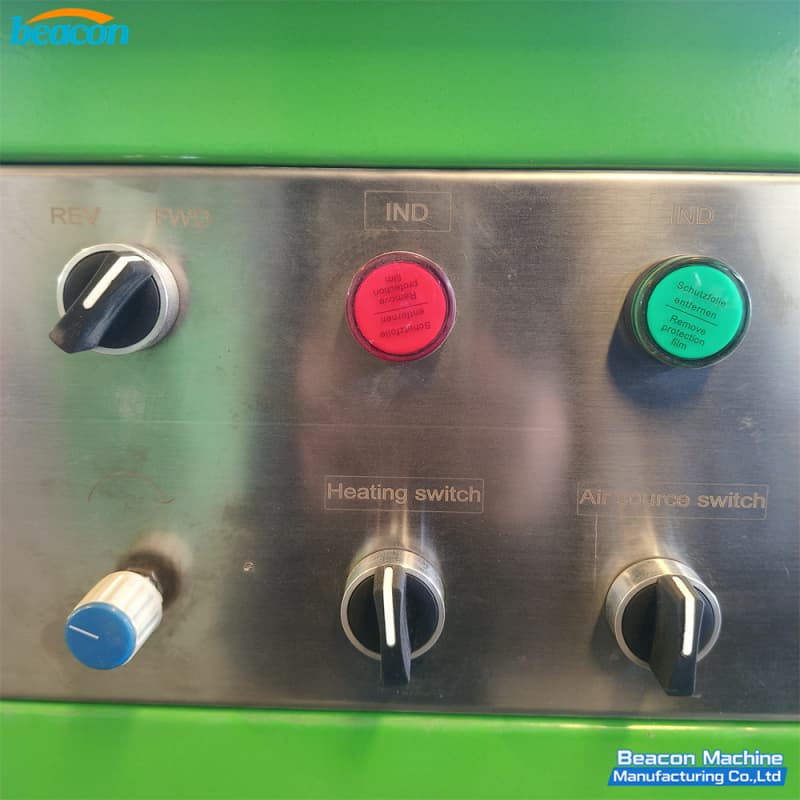

• Stepless Frequency Inverter Drive (±1 RPM Accuracy): High-precision variable frequency speed control system provides smooth rotational speed transitions from 0 to 3400 RPM with bi-directional rotation (clockwise/counter-clockwise) for all pump types.

• Automatic Fuel Temperature Stabilization (30–38°C): Features an automated electric heater and water cooling coil system with warning buzzer interlocks to prevent test oil viscosity thinning and preserve testing accuracy.

• Direct Detection of Internal Cavitation & Wear: Accurately measures gear pump suction vacuum down to 0.09 MPa and throttle shaft leakage (25–70 ml/min), instantly revealing scored plunger sleeves or worn gear teeth.

• BEACON MACHINE Factory Technical Support: Complete with three-jaw and internal-tooth couplings, detailed Cummins calibration charts, and lifetime engineering consultation.
